Australian dam owners and engineers operate under one of the world's more structured dam safety frameworks. The Australian National Committee on Large Dams (ANCOLD) sets the guidelines that most state regulators reference directly, and seismic instrumentation sits firmly within scope for any dam classified at Significant consequence category or above. This article explains what ANCOLD expects from strong motion accelerograph installations, how consequence category drives those requirements, and what to look for when specifying instruments for an Australian dam safety program.
In this article
- How consequence category drives instrumentation requirements
- What ANCOLD requires from seismic instrumentation
- Accelerograph placement on and near the dam
- Data requirements: open formats and Geoscience Australia compatibility
- Array timing across a multi-point installation
- Trigger thresholds and continuous recording
- Independence and long-term operability
- The EQResponder range for Australian dam safety
- Frequently asked questions
How consequence category drives instrumentation requirements
ANCOLD classifies dams by the consequences of failure, not simply by size or seismic hazard zone. A dam in a low-seismicity area can still carry a High or Extreme consequence category if there is significant population or infrastructure at risk downstream. That consequence category is the primary driver of surveillance and instrumentation obligations under every state regulatory framework that references ANCOLD - including Victoria, Queensland, New South Wales, South Australia, Western Australia, and Tasmania.
For dams classified at Significant consequence category and above, ANCOLD's surveillance guidelines require continuous monitoring programs and periodic independent review. Seismic instrumentation is explicitly within scope: strong motion accelerographs are required to record the dam's response to any significant earthquake, and that record forms part of the dam's ongoing safety case.
The practical implication is that the seismic hazard of the dam's location is only part of the equation. A tailings storage facility, ash dam, or water supply dam near any populated area can carry instrumentation obligations regardless of whether the site has seen recent seismic activity. Consequence category, not postcode, is the trigger.
What ANCOLD requires from seismic instrumentation
ANCOLD's dam safety guidelines call for strong motion accelerographs that can record potentially damaging ground shaking and the structural response of the dam to that shaking, without clipping. The instrument requirements follow from that purpose:
Triaxial recording. Each accelerograph must record ground motion in three mutually perpendicular components - typically north-south, east-west, and vertical. Single-axis instruments do not satisfy this requirement.
Sufficient dynamic range. The instrument must be able to capture the full range of motion from small background events through to a major near-field earthquake without saturating. High dynamic range digitisers - 130 dB or above - provide the headroom that keeps an instrument useful across the full spectrum of events it will encounter over a service life of ten or more years.

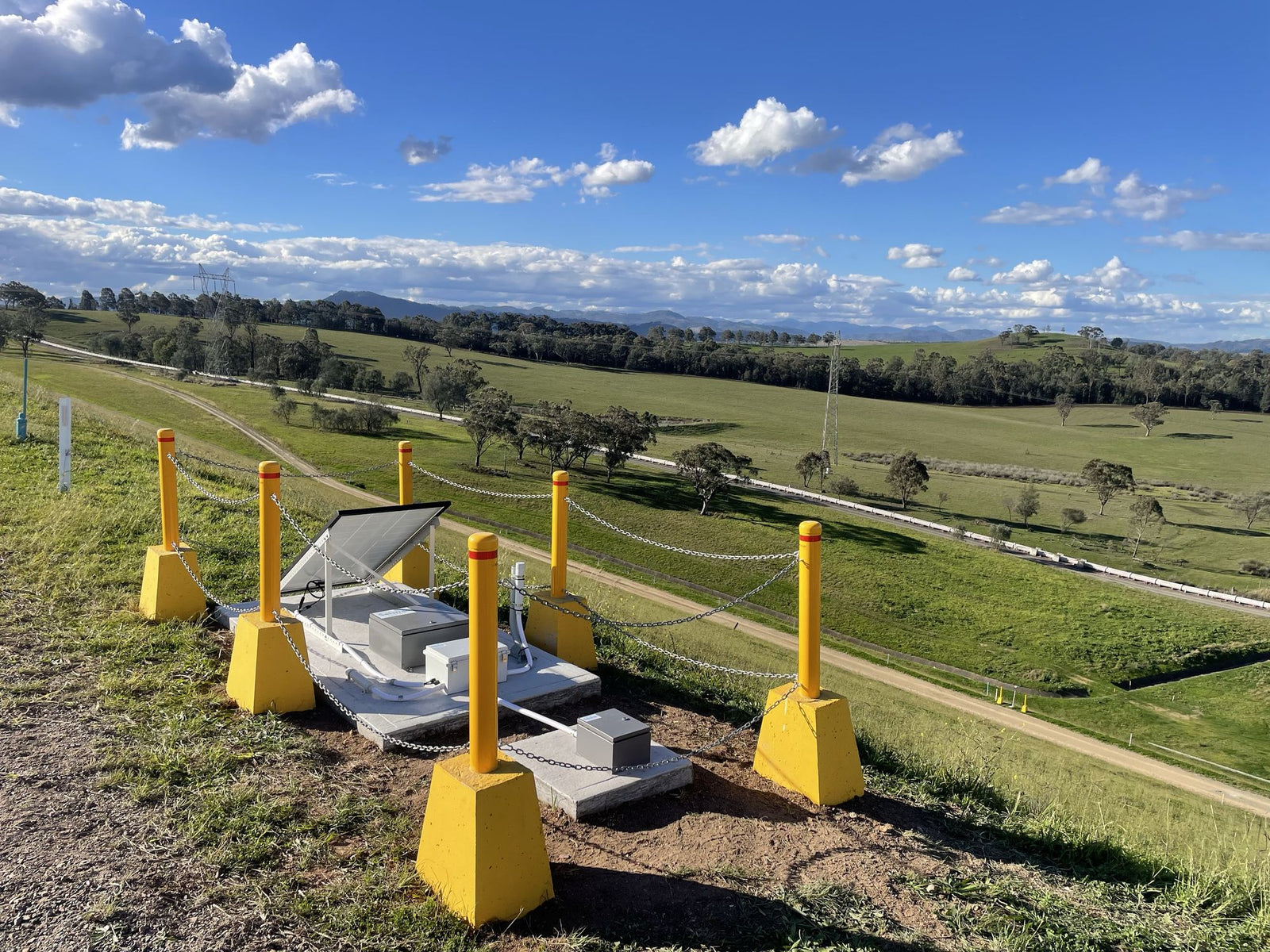

Placement on the dam and in the free field. Standard practice requires at least one accelerograph on the dam structure itself, and at least one installed in the free field away from the structure, so that the structural response can be separated from the incoming ground motion. For larger or more complex structures, additional instruments at the crest, abutments, and foundation are standard.
Calibration and ongoing verification. Instruments must be maintained in a state of readiness. A seismic accelerograph that is not periodically verified and maintained provides no safety value when an event actually occurs.
Accelerograph placement on and near the dam
Placement is a structural engineering decision as much as an instrumentation one, but some principles are consistent across dam types:
For embankment dams, one instrument at the crest and one at the toe or base of the embankment allows the differential response across the structure to be recorded. If cracking or slope instability is the primary failure concern, the crest instrument is the most critical.
For concrete dams, instruments at the crest and at the foundation gallery capture the dynamic amplification across the dam height. Abutment instruments are added where the dam-foundation interaction is a structural concern.
For tailings storage facilities, the monitoring program typically follows the same logic as for embankment dams, but with additional consideration for the liquefaction sensitivity of the stored material. The downstream consequence assessment is usually what drives the consequence category into the range where ANCOLD requires seismic instrumentation.
In all cases, the free-field reference instrument should be placed on competent ground away from the structure, so the recorded motion represents the incoming earthquake rather than the amplified or modified response of the structure.
Data requirements: open formats and Geoscience Australia compatibility
Australian dam safety programs increasingly require that seismic data be accessible in standard formats - both for the dam owner's own engineering team and for integration with Geoscience Australia's national seismic network where relevant.
The practical standard for strong motion data in Australia is MiniSEED for continuous waveform recording, with CSV or JSON export for post-event analysis and reporting. Instruments that store data in proprietary formats create a dependency on the original vendor's software for every data extraction, every post-event review, and every engineering assessment. That dependency becomes a liability when the vendor relationship changes, when software support lapses, or when the dam's engineering consultant uses different tools.
Open data formats are not just a convenience. They are a design principle that determines whether your organisation retains genuine control of its own seismic records over the full service life of the instrumentation program.
Real-time data streaming via SeedLink allows recorded motion to be fed directly into analysis platforms, alarm systems, or remote monitoring services without a manual data retrieval step. For dams with emergency action plan obligations - which applies to all referable dams in Queensland and most Significant-and-above dams in other states - the ability to confirm whether a threshold acceleration has been exceeded immediately after an event is operationally important.
Array timing across a multi-point installation
A single accelerograph records the response at one point. A multi-point installation across a dam structure records the spatial pattern of that response - which is what actually allows engineers to assess whether the structure behaved as designed, whether differential movement occurred between the crest and the foundation, and whether the embankment or concrete responded uniformly.
Meaningful comparison of records from different points in an array requires that every instrument is time-synchronised to a common reference. Sub-millisecond accuracy is the standard. Without it, the relative timing between instruments introduces uncertainty into exactly the analysis that multi-point monitoring is designed to support.
The conventional approach synchronises each instrument individually via GPS, which requires a GPS antenna at each recording unit. On a dam - where antenna placement on a concrete face or embankment crest is constrained - this is a real installation burden. A better approach uses Precision Time Protocol (PTP) over the local network, where a single GNSS reference synchronises the entire array. One antenna, not one per instrument. The synchronisation accuracy is comparable; the installation is substantially simpler, particularly when adding instruments to an existing installation.
Trigger thresholds and continuous recording
Older accelerograph installations used event-triggered recording: the instrument would wake on detection of shaking above a preset threshold and record until motion fell below that threshold. Triggered recording keeps data storage requirements manageable with older hardware, but it introduces two problems for dam safety programs.
First, the trigger threshold has to be set somewhere. If it is set too high, small events that are still relevant to the dam's safety case go unrecorded. If it is set too low, the instrument accumulates a large volume of data from noise and minor events.
Second, triggered recording means there is no record of the seconds immediately before the trigger fires. For a dam safety event, the pre-trigger motion - what the dam was experiencing before the main arrival - is often exactly what engineers need to reconstruct the full sequence.
Modern instruments with sufficient onboard storage record continuously in a ring buffer, retaining a full record of all motion over a configurable window of months or years. Every event, at every level of shaking, is available. The ring buffer overwrites itself continuously, so storage does not grow indefinitely. This is now the standard approach for dam safety installations, and any instrument specified for an ANCOLD-compliant program should support continuous recording as a baseline.
Independence and long-term operability
Dam safety instrumentation programs operate over decades. The ANCOLD framework requires ongoing surveillance, periodic independent review, and retention of records across the full life of the dam. An instrumentation system that requires the original installer to be involved for every data extraction, every configuration change, or every software update creates a dependency that outlasts any project or service contract.
An independently operable system means the dam owner's own technical team - or their consulting engineer, using standard tools - can retrieve data, verify instrument health, adjust configuration, and add instruments without returning to the original supplier. That independence is what makes an instrumentation program genuinely sustainable across a 20 or 30 year dam safety cycle.
Open data formats, standard network protocols, and instruments that expose their configuration through documented interfaces are the practical markers of a system that will still be fully operable a decade from now, regardless of what happens to vendor relationships, software versions, or support arrangements.
The EQResponder range for Australian dam safety

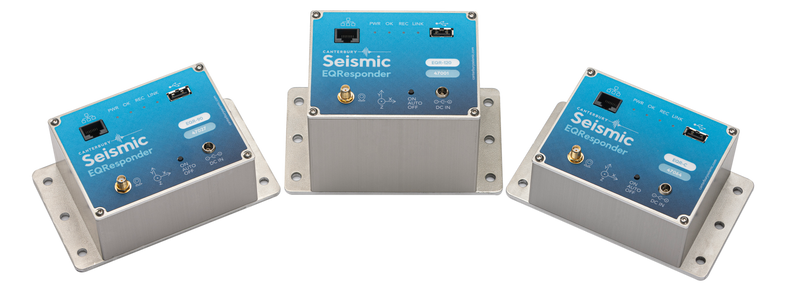

The EQResponder family was designed from the outset for exactly the requirements that ANCOLD-compliant dam safety programs place on instrumentation: triaxial digital MEMS sensing, high dynamic range, continuous ring-buffer recording, open data formats, and array-scale timing from a single GNSS reference. Each of those design decisions maps directly to a requirement in this article.
EQR-90. The professional-grade single-unit accelerograph. Suited to free-field reference installations, single-structure monitoring on smaller dams, and installations where simplicity of deployment is the priority. Records continuously, outputs MiniSEED and CSV natively, and connects to the broader array over standard network connections.
EQR-120. The high dynamic range instrument, with a 130+ dB digitiser, for installations where the full range of expected ground motion - from background microseismic activity through to a major near-field event - needs to be captured without compromise. The natural choice for high or extreme consequence category dams where the safety case demands the most complete possible record.
EQR-C. The multi-channel central recorder and sensor hub for array installations. A single EQR-C accepts inputs from multiple sensors - accelerometers, geotechnical sensors, or a mix - and synchronises the whole array over PTP from one GNSS antenna. For a dam with instruments at the crest, foundation, abutments, and free field, the EQR-C is what makes the array function as a coherent system rather than a collection of independent recorders.
Because the EQResponder range is built on digital MEMS sensing with no moving parts and no consumables, ongoing servicing costs are low. There are no calibration springs to drift, no mechanical components to replace on a fixed schedule, and no proprietary software licenses required to keep the system running. Routine maintenance is limited to periodic health checks, firmware updates, and verification of GNSS lock - tasks any technically capable site team can perform without specialist support. For dam owners managing instrumentation programs across multiple sites, or over the multi-decade lifespan that ANCOLD programs require, that low ongoing cost of ownership is a material consideration alongside the capital cost of the instruments themselves.
See how the EQResponder range is used in dam and hydro monitoring.
Frequently asked questions
Which Australian dams require seismic instrumentation under ANCOLD guidelines?
ANCOLD's guidelines apply to dams classified at Significant consequence category and above. The consequence category is determined by the downstream population at risk, infrastructure exposure, and environmental sensitivity - not by the seismic hazard of the site. In practice, most large water supply dams, tailings storage facilities with downstream communities, and major hydroelectric dams fall within the categories where seismic instrumentation forms part of the required surveillance program.
Does Adelaide's higher seismic hazard change the instrumentation requirements?
Adelaide and much of South Australia sit in an area of elevated seismic hazard relative to other Australian capitals, which is a factor in the dam safety risk assessment for facilities in the region. Higher hazard means a greater probability that a dam will experience significant shaking during its service life, which strengthens the case for instrumentation that can reliably capture that shaking when it occurs. The ANCOLD requirement is driven by consequence category rather than hazard zone, but hazard informs the risk assessment that sets the consequence category in the first place.
What is the difference between a strong motion accelerograph and a seismograph for dam monitoring?
A seismograph is built for sensitivity - detecting small or distant earthquakes. A strong motion accelerograph is built for dynamic range - recording large near-field shaking without clipping. For dam safety, what matters is an accurate, uncorrupted record of the shaking the dam actually experienced during a significant event. That is what an accelerograph provides. A seismograph installed on or near a dam will clip on exactly the events that matter most for the dam's safety case.
How many accelerographs are typically required for a dam installation?
Standard practice, consistent with ANCOLD and international guidance, requires at minimum one instrument on the dam structure and one in the free field. Larger or more complex structures - concrete arch dams, high embankments, structures with significant foundation variability - typically require additional instruments at the crest, foundation, and abutments. Tailings storage facilities with multiple embankment stages may require instruments at each stage.
What data formats should a dam safety accelerograph produce?
Open, non-proprietary formats: MiniSEED for continuous waveform data, CSV and JSON for structured export, and SeedLink for real-time streaming. These formats allow the recorded data to flow into whatever analysis tools the dam's engineering team uses, to be shared with Geoscience Australia or state agencies if required, and to remain accessible regardless of changes to the vendor relationship. Proprietary formats that require licensed software to access are incompatible with the long-term record-keeping obligations of an ANCOLD-compliant dam safety program.
Can the same instrument used for dam monitoring connect to a broader seismic network?
Yes, and this is increasingly common in Australia. Instruments that support SeedLink streaming can feed data in real time to monitoring platforms, regional networks, or Geoscience Australia's national infrastructure. This allows a dam safety instrument to serve multiple purposes simultaneously: recording the dam's structural response for the owner's safety program, and contributing ground motion data to the national seismic monitoring picture.
Canterbury Seismic Instruments designs and manufactures strong motion accelerographs and array recording systems from Christchurch, New Zealand. The EQResponder range is designed for dam safety, structural monitoring, and research-grade network applications. Talk to us about your dam monitoring requirements.
